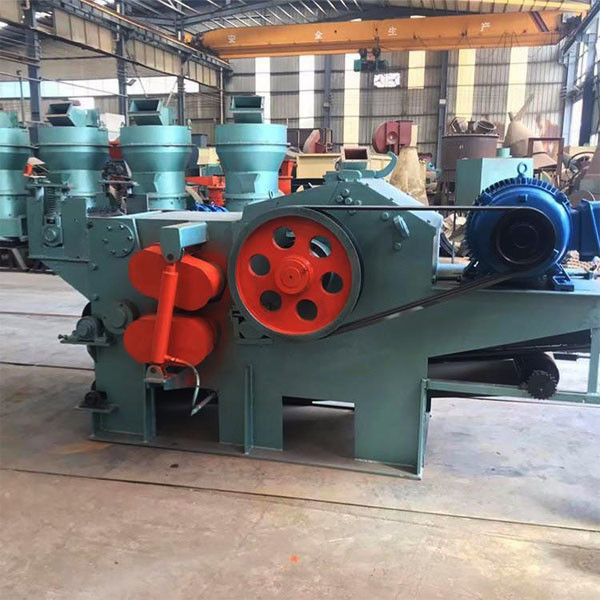

Large Automatic Tree Branch Drum Wood Chipper Machine

    Buy cheap Large Automatic Tree Branch Drum Wood Chipper Machine from wholesalers

    Buy cheap Large Automatic Tree Branch Drum Wood Chipper Machine from wholesalers
    • Buy cheap Large Automatic Tree Branch Drum Wood Chipper Machine from wholesalers
    • Buy cheap Large Automatic Tree Branch Drum Wood Chipper Machine from wholesalers
    • Buy cheap Large Automatic Tree Branch Drum Wood Chipper Machine from wholesalers

    Large Automatic Tree Branch Drum Wood Chipper Machine

    Ask Lasest Price
    Brand Name : ThoYu
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/A, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 10-120 working days
    • Product Details
    • Company Profile

    Large Automatic Tree Branch Drum Wood Chipper Machine

    Large Large Automatic Tree Branch Drum Wood Chipper Machine


    The main raw material cut by Large Automatic Tree Branch Drum Wood Chipper Machine is small diameter wood, wood harvesting, processing residues (such as branches, twigs, bark, lath, Roundwood core, waste veneer, waste wood, etc.), but also can be used to cut non-wood raw materials (such as sugar cane, reeds, Moso bamboo, etc.). After the cutting of raw materials, become a certain specification of small pieces of wood, as particleboard, MDF, fiberboard, and other paper production raw materials, can also be used for fuel.


    Large Automatic Tree Branch Drum Wood Chipper Machine is composed of body, knife roll, upper and lower feed roll, conveyor belt, hydraulic system, etc. The body of the machine is made of high strength steel plate welded and is the supporting base of the whole machine. The machine body is made of high-strength steel plate welded together, which is the supporting base of the whole machine.


    Large Automatic Tree Branch Drum Wood Chipper Machine parameter


    Large Automatic Tree Branch Drum Wood Chipper Machine
    ModelTYXP-215TYXP-216TYXP-218TYXP-2113
    Feeding port size (mm)160*400230*590300*680450*700
    Fly-cutter qty (piece)2-32-32-32-3
    Revolving speed (rotate/minute)592590650500
    Feeding raw materials max diameter (mm)160230300450
    Chip size (mm)30303038
    Production capacity (ton)3-58-1014-1815-30
    Main motor power( kW)455590-110200-250
    Feeder power (kW)(2.2-3)*2(3-4)*2(4-5.5)*27.5*2
    Oil pump motor power (kW)1.51.51.53
    Conveyor power (kW)3344
    Weight (kg)29905030700011840
    Dimension(mm)1470*1550*9701800*1900*12102200*2150*15003670*2517*2050

    Large Automatic Tree Branch Drum Wood Chipper Machine


    Large Automatic Tree Branch Drum Wood Chipper Machine features


    Large Automatic Tree Branch Drum Wood Chipper Machine can be used for a wide range of applications, diversification of raw materials, good cutting quality, safety and reliability, simple and convenient operation, and high production efficiency. Drum chipper is a new domestic chipper produced by our company, which is suitable for chipboard, MDF, wood fiberboard, paper making, power plant, boiler and other industries. This product has advanced structure, high quality of cutting chips, wide adaptability of raw materials and convenient operation and maintenance.


    Large Automatic Tree Branch Drum Wood Chipper Machine


    why choose us?

    1. Dedicated and fully equipped. Multi-machine processing in the whole process of order, reducing the outsourcing process and making the delivery more on time.
    2. Strict quality control, quality assurance. Arrange special quality inspection personnel to strictly inspect the product processing size, drawing style, etc.
    3. Factory direct and fast shipping. All products will be shipped the same day if in stock, custom products will be shipped as soon as possible.
