    Solid Wood Boards Wood Cutting Saw Machine For Stringer Pallets

    Ask Lasest Price
    Brand Name : ThoYu
    Model Number : TYCS-6000
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/A, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 10-120 working days
    • Product Details
    • Company Profile

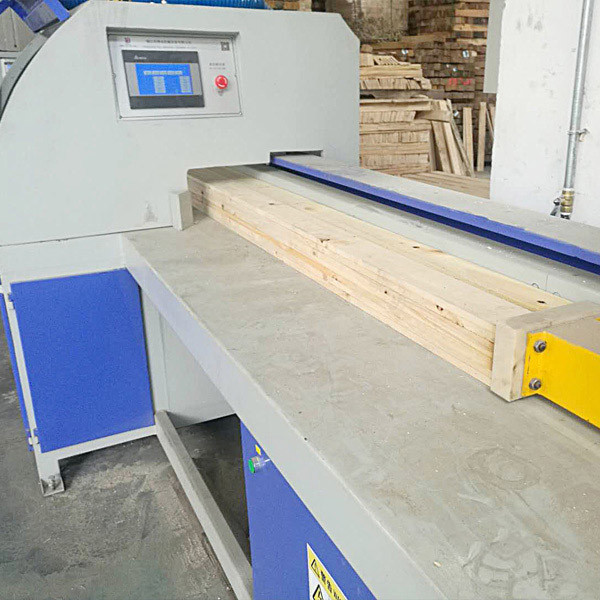

    Solid Wood Boards Wood Cutting Saw Machine For Stringer Pallets

    Solid Wood Boards Wood Cutting Saw Machine For Stringer Pallets

    CNC Wood Timber Cutting Saw is controlled by PLC. As long as the required wood size and cut size is entered, the machine automatically cutting accord to the cutting size, it also have cutting program can edit and save cutting plans, which greatly increases the efficiency of the crushing process, saving labor, safety, and efficiency.

    Solid Wood Boards Wood Cutting Saw Machine Parameter

    ModelTYCS-4000TYCS-6000
    Dimension of working table5000*700*980 mm7000*700*980 mm
    Max cutting length4000 mm6000 mm
    Max cutting width200 mm200 mm
    Blade diameter500 mm500 mm
    Max cutting height100-160 mm100-160 mm
    Main spindle rotating speed3500/rpm3500/rpm
    Main motor power7.5 kW7.5 kW
    Net weight950 kg1100 kg
    Overall dimension7300*1200*1500 mm9300*1200*1500 mm

    Solid Wood Boards Wood Cutting Saw Machine For Stringer Pallets

    Solid Wood Boards Wood Cutting Saw Machine Features

    • 1. Strong power. The cnc wood saw machine uses a 7.5kw GB motor, which makes cutting wood easy and efficient.
    • 2. High precision. using high precision sensor and the world's top pneumatic original to make sure that the saw cutting has small errors, which also cutting different sizes one time.
    • 3. Stable and efficient. the lift saws are controlled by servo motor, high efficiency, and good stability, and can achieve the efficiency of the manual cut saw.
    • 4. The clean environment, reduce dust in workshop, low labor intensity.
    • 5. Safer machine design. Automated operation, saving time and effort for workers, greatly improving factory productivity.

    Solid Wood Boards Wood Cutting Saw Machine For Stringer Pallets
